Cost Model

Single-GPU Cost Modeling

Latency / Runtime Cost Estimation

• Roofline Model

  • Idea: \(\max(\text{compute time}, \text{memory access time})\)

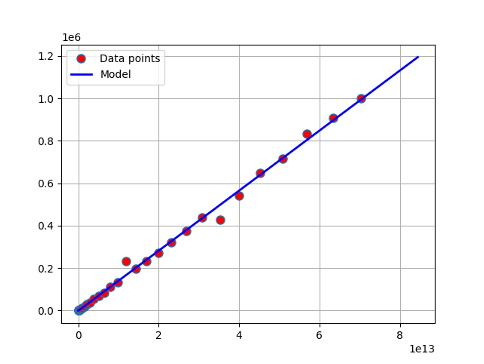

  • Use linear regression model for NVIDIA GPUs

  • Compute time model (\(\text{latency} + \text{bandwidth} \times \text{#flops}\))

  • Memory access model (\(\text{latency} + \text{bandwidth} \times \text{#bytes}\))

Memory Cost Estimation

• Memory cost estimation for each operator

  • FX graph enables precise peak memory analysis

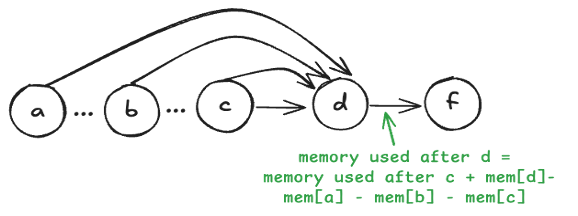

  • Memory liveness analysis

    • Track the time intervals during which tensors are alive

Multi-GPU Cost Modeling

Communication Modeling

Challenge * Communication cost varies for multi-level hierarchical communication * Congestion may occur in certain scenarios

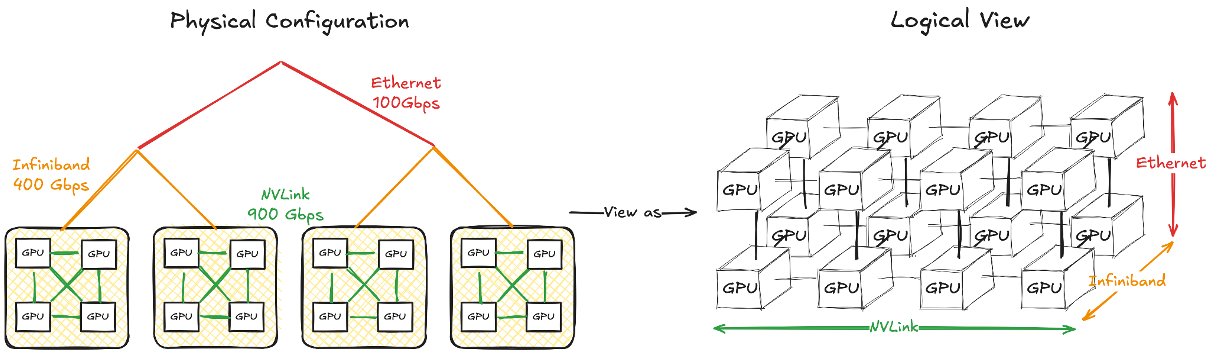

Device Mesh Abstraction

• Mapping the GPU network hierarchy into a N-dimension device mesh

• Devices in the same mesh dimension have the same communication capability (latency, bandwidth)

• How to obtain the device mesh?

  • Current Approach: Predefined device mesh shape

    • Profile all-reduce among the devices in the same mesh dim

    • Linear regression along each mesh dim \(i\) (\(\text{time}_i = \text{latency}_i + \text{bandwidth}_i \times \text{#bytes}\))

  • In-Progress: Auto Mesh Discovery

    • Motivation

      • More robust to complex communication architecture

      • More accurate since each dimension can be considered respectively

    • Profile the communication latency between each mesh dimension

    • Search the mesh shape where the communication time along the same dim with max similarity

    • Linear regression along each mesh dim \(i\) (\(\text{time}_i = \text{latency}_i + \text{bandwidth}_i \times \text{#bytes}\))
